28 Interactive Graphics

28.1 Acknowledgements

This chapter is derived from the R-DAVIS (R-Data Analysis & Visualization In Science) course https://ucd-cepb.github.io/R-DAVIS/, which is licensed as follows:

Content from this course is derived and remixed from many sources in adherence with their respective licensing, the Creative Commons Attribution licence (CC BY 4.0). All content is copyrighted to its respective owners.

The source of the content for any particular lesson can be found at the bottom of each lesson’s website.

All original content is also licensed under the Creative Commons Attribution license. The full legal text of this license can be found at https://creativecommons.org/licenses/by/4.0/legalcode.

Accordingly this chapter is also licensed according the the CC by 4.0 license.

28.2 Learning Objectives

Learn some basic visualization dos and don’ts
Learn how to customize color in plots
Gain a basic understanding of packages cowplot and patchwork for multi-paneled plots
Introduction to interactive plotly package

Goals: To learn how to use R to:

Make multi-paneled plots
Make a ggplot2 graph interactive
- Make a more informative pop-up with customized labels
- Make an animated interactive graph
Make interactive Manhattan and LocusZoom plots
Create linked interactive plots
Label outliers
Avoid overlapping labels
Create an interactive web app using Shiny

28.3 Data Visualization in R

There are many tips and tricks that are available for the multitude of visualization packages in R. However, there aren’t as many simple rules or suggestions on what actually makes a good visualization. This starts with the “grammar of graphics”, which is the fundamental rules or principals which describe an art or science (from Wickham 2010).

“A good grammar will allow us to gain insight into the composition of complicated graphics, and reveal unexpected connections between seemingly different graphics (Cox 1978)”

Because there are so many options and methods to plot our data in R, we need to think about how we are going to represent the data, how can that data be interpreted visually, and what story it may tell.

A very nice example of this is provided by this animation (created by Darkhorse Analytics, and used in Jenny Bryan’s excellent stat545 course). It shows how simplification can make a big difference in communication.

28.3.1 Exploration vs. Communication

One thing to consider is what the objective is when creating a visualization or plot. When we build plots for exploratory purposes, we already know what the variables are we are using, and the objective is more about what sort of patterns the data might show. When communicating, the objective is more about providing a stand-alone snapshot which helps others understand what you are trying to convey.

28.3.2 `ggplot2`

While there are many visualization options in R, we believe the most comprehensive and powerful is the ggplot2 package. Much of the class has used/follows ggplot, so here’s a little background that might be useful.

Based on Grammar of Graphics book by Leland Wilkinson hence ‘gg’
Each part of the plot is layered or built upon the other parts (like building legos).
Consider parts of a ggplot2 as parts of a house.
- Data = The materials the house is built from (ggplot(data=yourdata))
- Plot Type = The structure/design of your house (how will it look?) (geom_)
- Aesthetics = What the exterior looks like, i.e., the paint/decor (aes())
- Stats = Ways to wire or plumb your house…how to tie your data together, or transform it (stat_)

A questions we often get asked when helping students with ggplot figures is, how can I put two y-axis on my graph? Short answer, with ggplot, you can’t. There is a good reason for this though, which is basically that the creators of ggplot2 believe that duel y-axis are confusing, eaisly misunderstood and not invertible (given a point on the plot space, you can not uniquely map it back to a point in the data space). We agree with this logic, and would urge you to never put two differnt y-axis on the same plot. Instead, make two separate graphs.

28.4 Color

There are so many options in R. It is fun to play around with color, but keep in mind not everyone sees color in the same way, and some folks cannot see certain spectrums of color (i.e., absence of blue or green receptors is common). See below for a example of what colorblindness may do…if you see numbers inside these circles, great, you have some blue/green retinal receptors.

Having said that, here’s a great cheat sheet of colors in R, it can be handy when trying to find the correct color or name of a color. Check out this recent Nature perspective piece on The misuse of colour in science communication.

28.4.1 Discrete/Categorical:

For a very nice discussion about color palettes, I recommend this page from the R cookbook folks.

Additionally, check out the great ggthemes package, which has many options. One I find very helpful is using scale_color_colorblind(), which if you have 8-9 categories, may be a nice way to display your data.

28.4.2 Continuous: `viridis`

The viridis package is an excellent set of colors that better represent your data, are easier to read for those with colorblindness, and they also tend to print fairly well in grayscale.

Take a look at the vignette online!

An example:

28.4.3 Customizing color pallettes in ggplot

The viridis color pallettes have been built into ggplot so that you can call upon them using the scale_fill_viridis_ or scale_color_viridis_ functions. Note that whether or not you use the fill or color scale function depends on which aesthetic you set in your plot. The functions also have extenstions depending on the kind of variable that you want to color: scale_fill_viridis_d is for discrete variables while scale_fill_viridis_c is for continous variables. Within the function, you can specify which virids pallette to use: A-D.

In this example we fill in our bars with the cut vairable in the diamond dataset, a categorical variable with 5 groups.

library(ggplot2)
ggplot(diamonds, aes(x = clarity, fill = cut)) +
  geom_bar() +
  theme(axis.text.x = element_text(angle=70, vjust=0.5)) +
  scale_fill_viridis_d(option = "C") +
  theme_classic()

28.5 Visualization Tips

This information isn’t meant to be comprehensive, but at minimum, it may provide some guidance when you are creating plots and figures.

28.5.1 Visualization Do’s

The most basic tip is keep it simple! Stick with a clean and clear message, what is your plot/figure trying to get across? Data visualization is effective when it is simple, and repackages data into a visual story that is easy to understand.

Label appropriately and legibly, including axes, and use text to highlight important bits
Use one color to represent each category, consider colorblind/BW friendly palettes
Order datasets using logical heirarchy (Make it easy for reader to compare values)
Use icons when possible to reduce unnecessary labeling
Pay attention to scale (e.g., start axis at zero not 2.4 to 3.5)
Include your data/outliers where possible
Be sure to increase your font size early on, as most journals require a large font size at time of publication.

28.5.2 Visualization Don’ts

A few things to avoid (which basically relates to keeping it simple):

Don’t try to add too much into one plot…keep it simple
Don’t add color uncessarily unless it provides a specific function
Avoid high contrast colors (red/green or blue/yellow)
Don’t use 3D charts. They can make it hard to discern or perceive the actual information.
Avoid ornamentation (shadowing, extra illustration, etc)
Avoid more than 6 categorical colors in a layout unless you looking at continuous data.
Keep fonts simple (avoid uncessary bold or italicization)
Don’t try to compare too many categories or data types in one chart

28.5.3 Examples

28.5.3.1 Scatterplots

One of the best simple plots for examining patterns in data, but very effective. Also used when adding model trend lines.

suppressPackageStartupMessages(library(ggplot2))
plot(x=iris$Petal.Width) # single variable

plot(x=iris$Petal.Width, y=iris$Petal.Length) # multiple variables

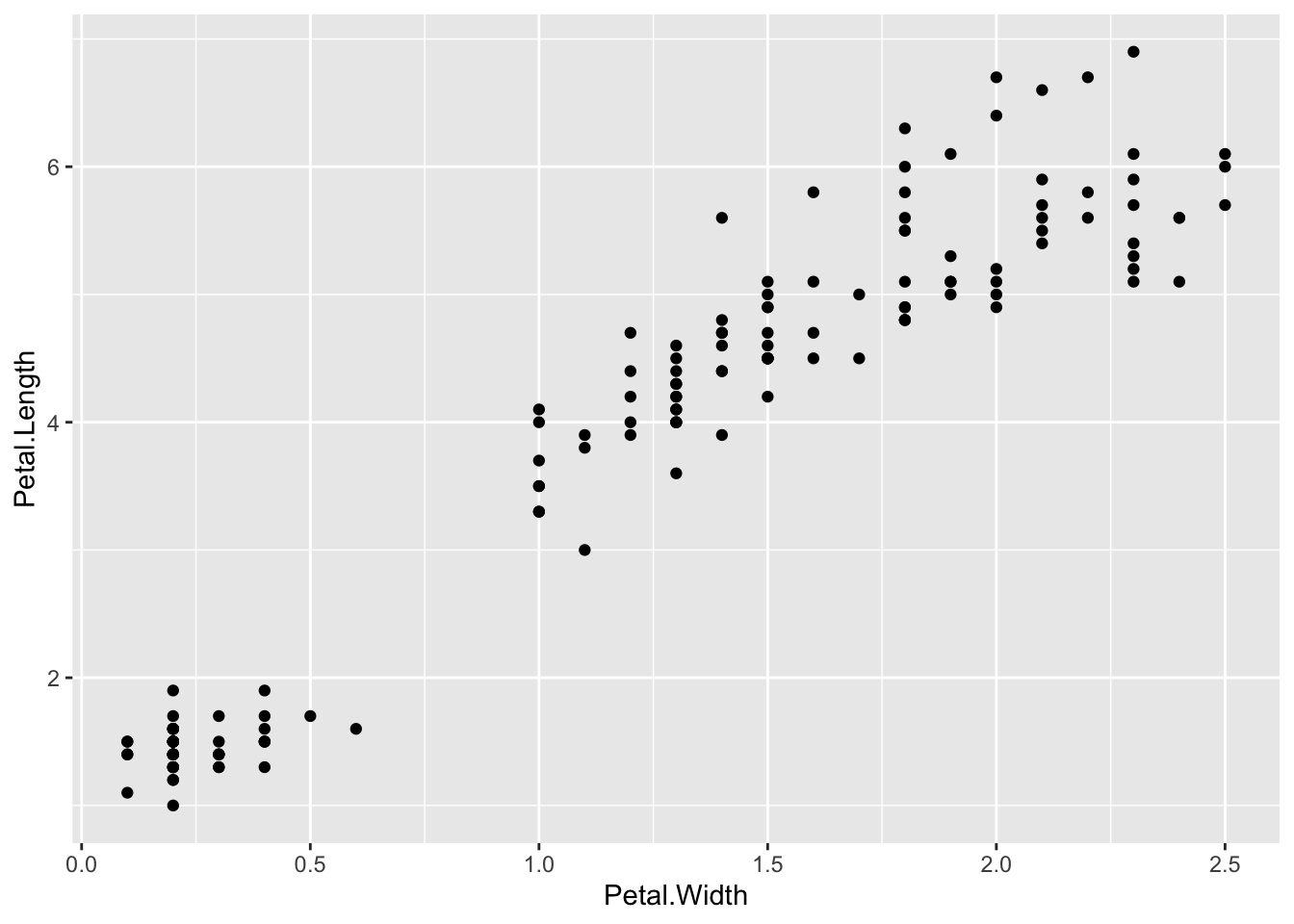

ggplot() + geom_point(data=iris, aes(x=Petal.Width, y=Petal.Length))

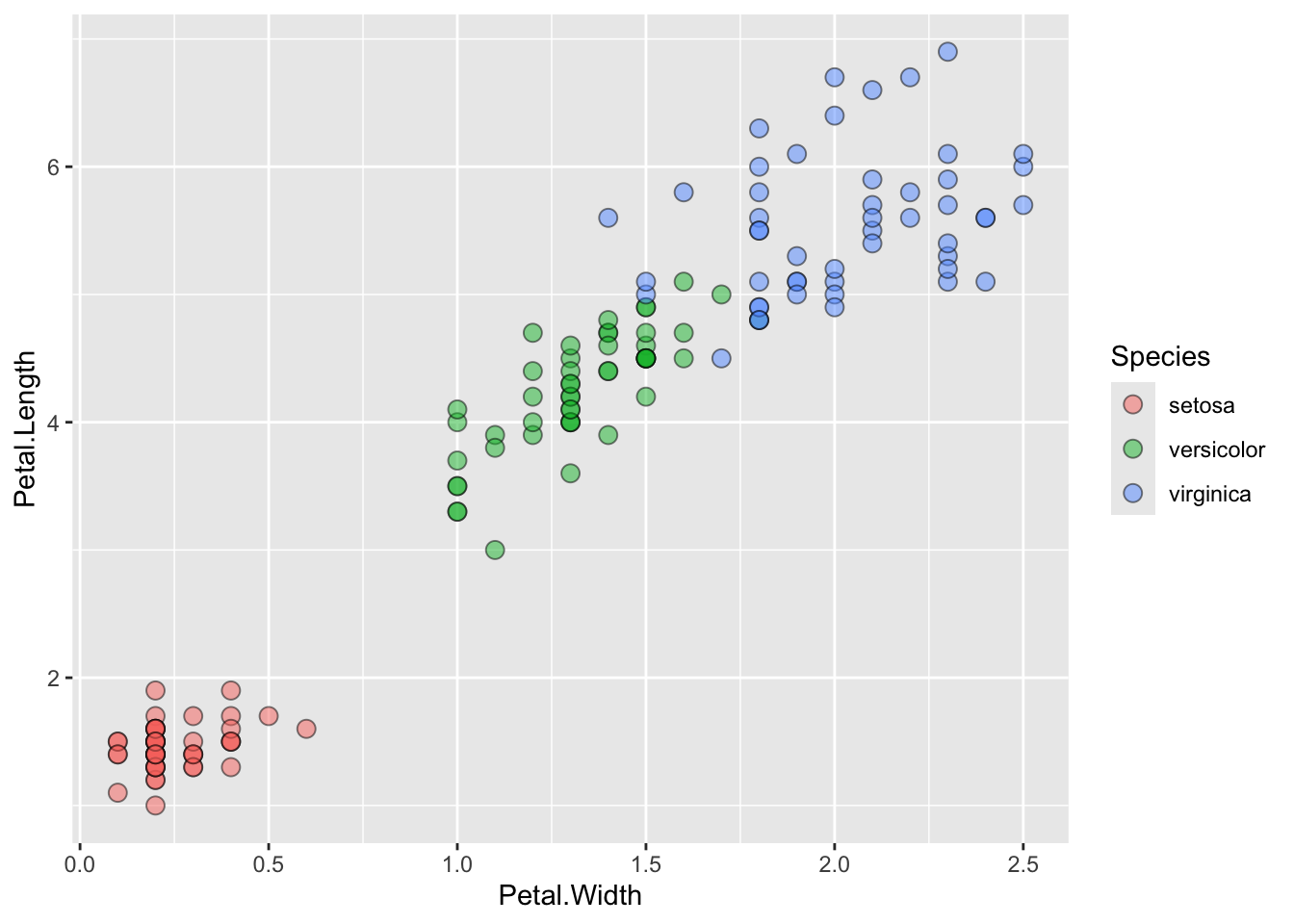

ggplot() + geom_point(data=iris, aes(x=Petal.Width, y=Petal.Length, fill=Species), pch=21, size=3, alpha=0.5)

28.5.3.2 Lineplots

Comparing relative change in quantities across a variable like time. Note the change when we avoid facetting each line independently.

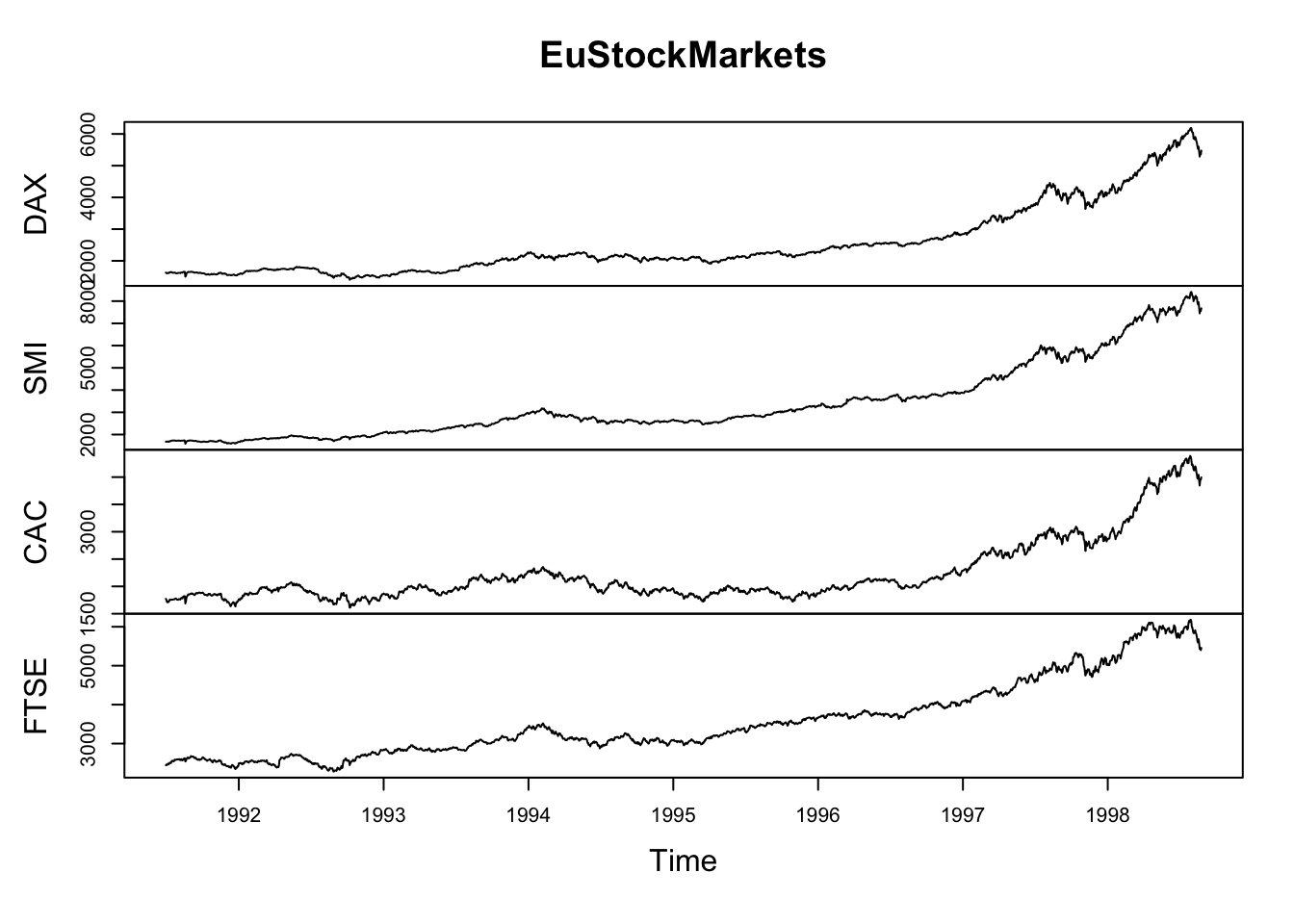

plot(EuStockMarkets)

suppressPackageStartupMessages(library(tidyverse))
EuStockMarkets_df <- data.frame(as.matrix(EuStockMarkets), date=as.numeric(time(EuStockMarkets)))
EuStockMarkets_long <- gather(data = EuStockMarkets_df, key = "Market", value="value", 1:4)

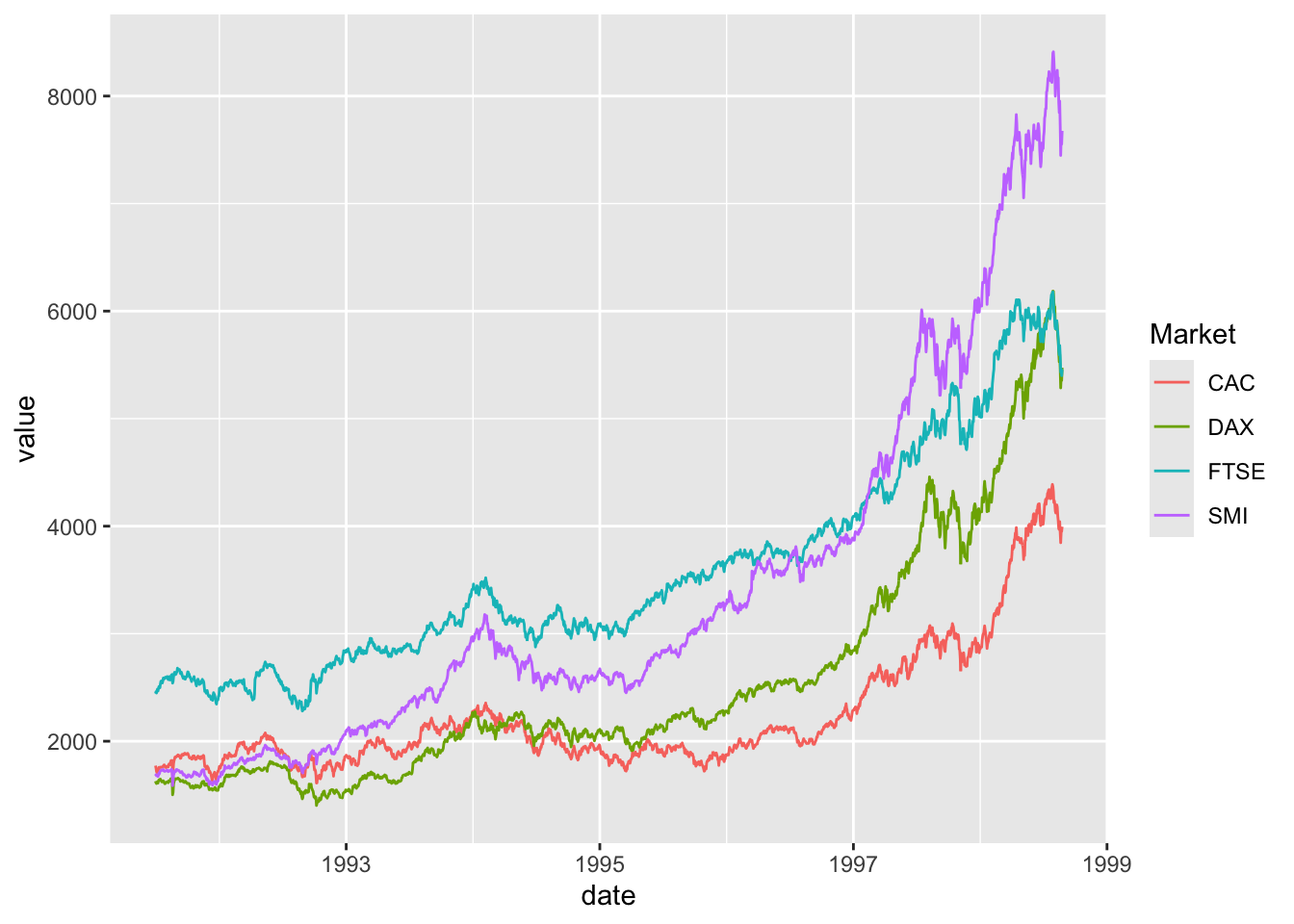

ggplot() + geom_line(data=EuStockMarkets_long, aes(x=date, y=value, color=Market))

28.5.3.3 Barplots

Comparing totals across multiple groups. Notice legibility when you stack the bars.

# code adpated from https://www.analyticsvidhya.com/blog/2015/07/guide-data-visualization-r/
suppressPackageStartupMessages(library(viridis))

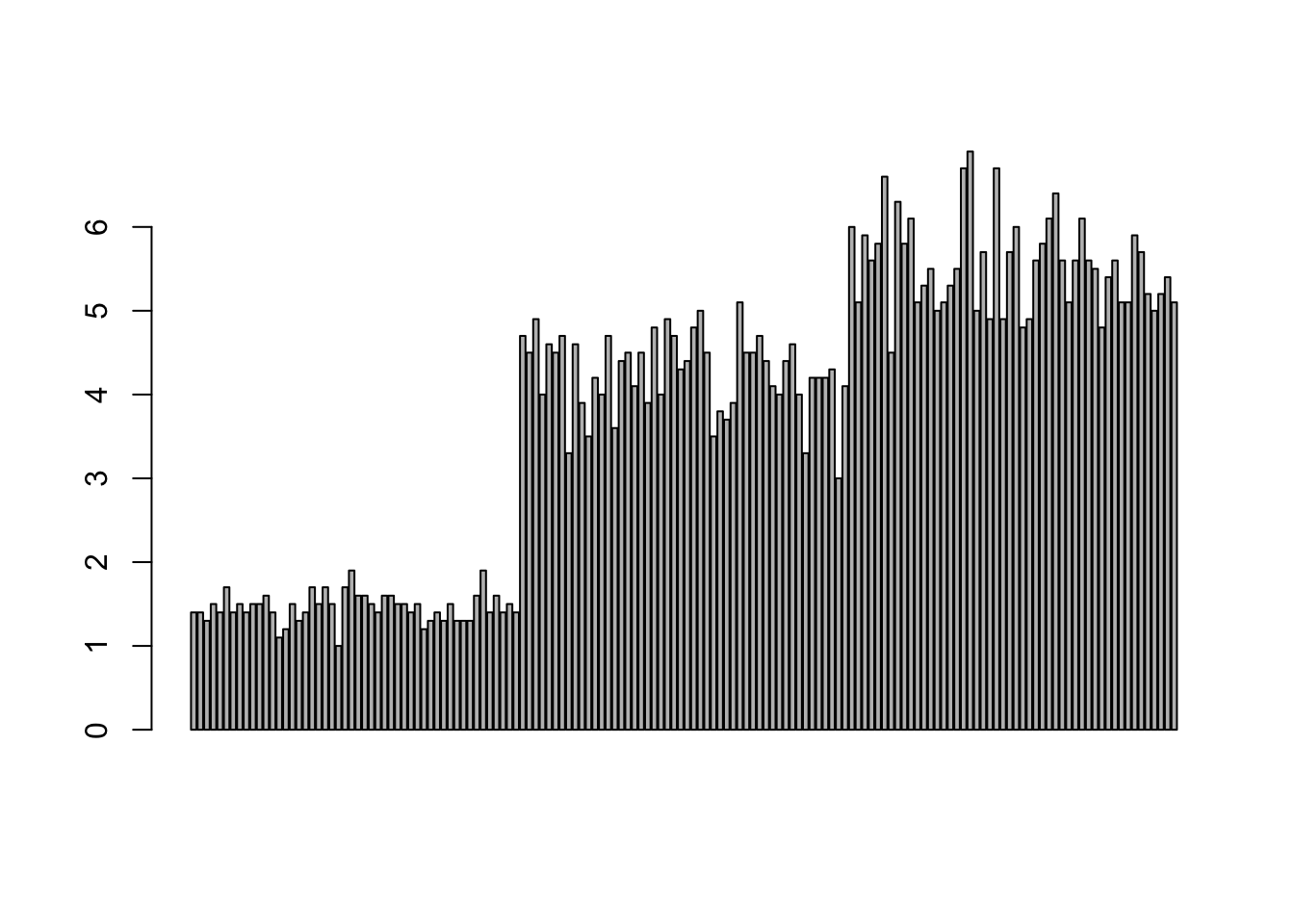

barplot(iris$Petal.Length)

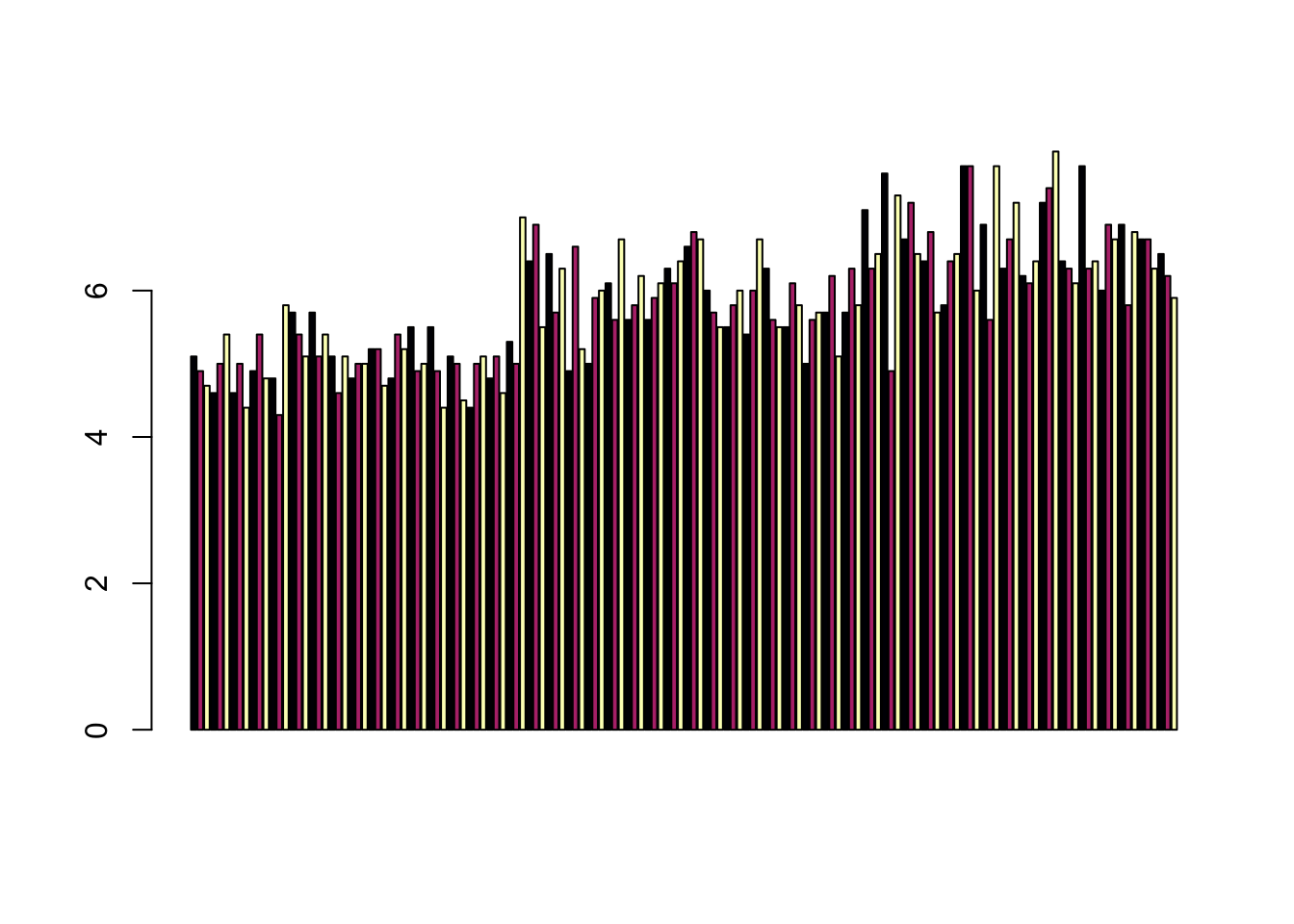

barplot(iris$Sepal.Length,col  = viridis(3, option = "A"))

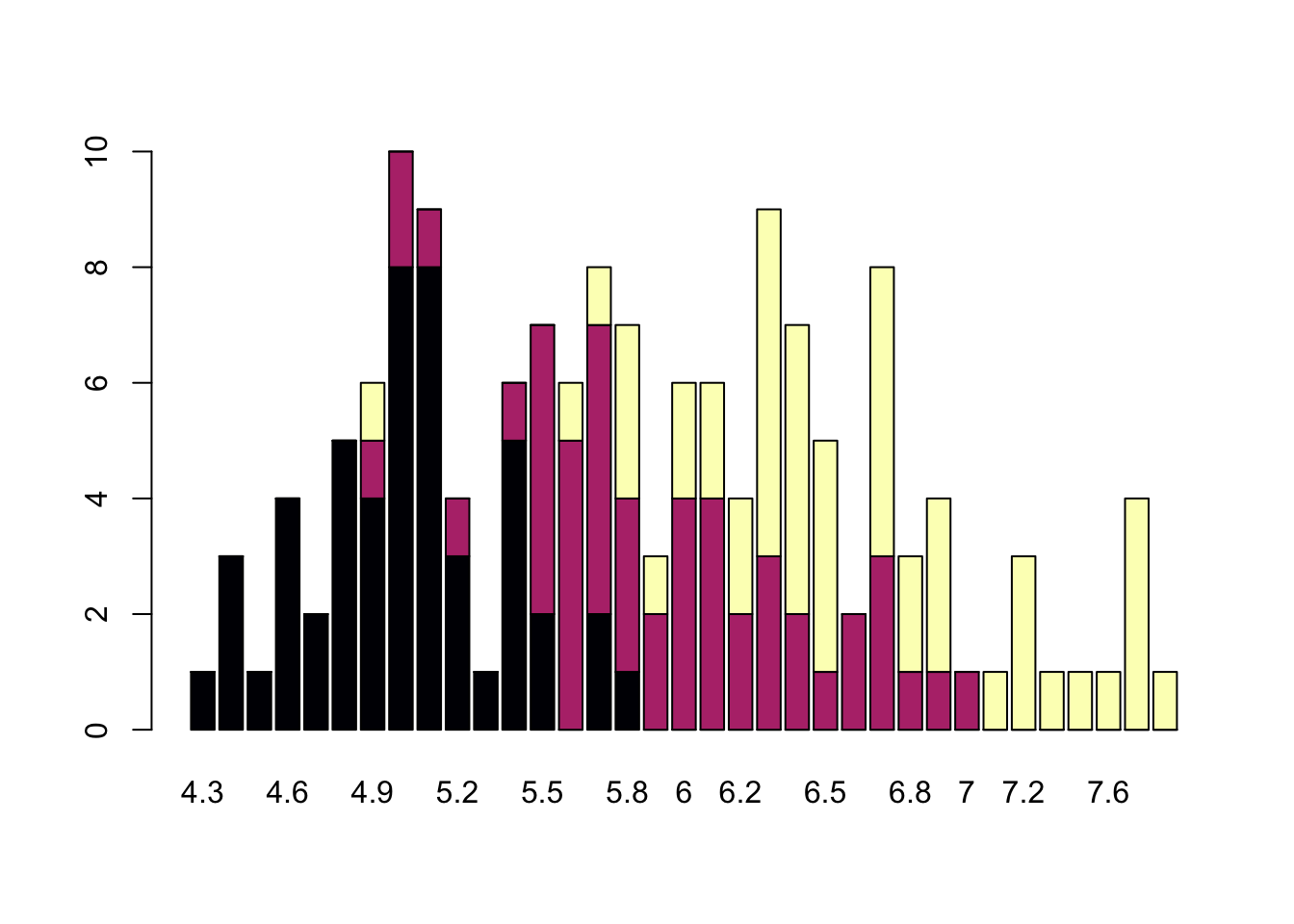

barplot(table(iris$Species,iris$Sepal.Length),col  = viridis(3, option = "A"))

28.6 Non-visual data interaction

Discussions of visualization so far have taken for granted that visualization is accessible to everyone, but researchers and audiences alike are not all sighted. RStudio is behind on blind accessibility, but some packages can provide text descriptions and sonification/audification of plots to improve accessibility for non-visual data interaction.

The BrailleR package (read more here), has a VI() function that wraps around plots and provides a text-description output. We can use the VI wrapper to interact with our plots from a textual perspective and identify what information is missing. Such text can also be used as alt-text when publishing this material. What could we do to our plot to improve the text description?

#install.packages("BrailleR")
library(BrailleR)

barplot <- ggplot(diamonds, aes(x = clarity, fill = cut)) +
  geom_bar() +
  theme(axis.text.x = element_text(angle=70, vjust=0.5)) +
  scale_fill_viridis_d(option = "C") +
  theme_classic()

VI(barplot)

This is an untitled chart with no subtitle or caption.
It has x-axis 'clarity' with labels I1, SI2, SI1, VS2, VS1, VVS2, VVS1 and IF.
It has y-axis 'count' with labels 0, 5000 and 10000.
There is a legend indicating fill is used to show cut, with 5 levels:
Fair shown as vivid purplish blue fill,
Good shown as vivid purple fill,
Very Good shown as vivid purplish red fill,
Premium shown as brilliant orange fill and
Ideal shown as brilliant greenish yellow fill.
The chart is a bar chart with 8 vertical bars.
These are stacked, as sorted by cut.

The sonification package’s sonify function can be used to represent data in audio form, where the x-axis can span sound across time, so that the length of time a sound plays follows the data long the x-axis from left to right; the y-axis can be expressed as pitch, so that the pitch of the sound matches to the values of the data (lower value = lower pitch).

One variable can be used as an input to hear the distribution. For instance this univariate plot of iris petal width visually looks like this:

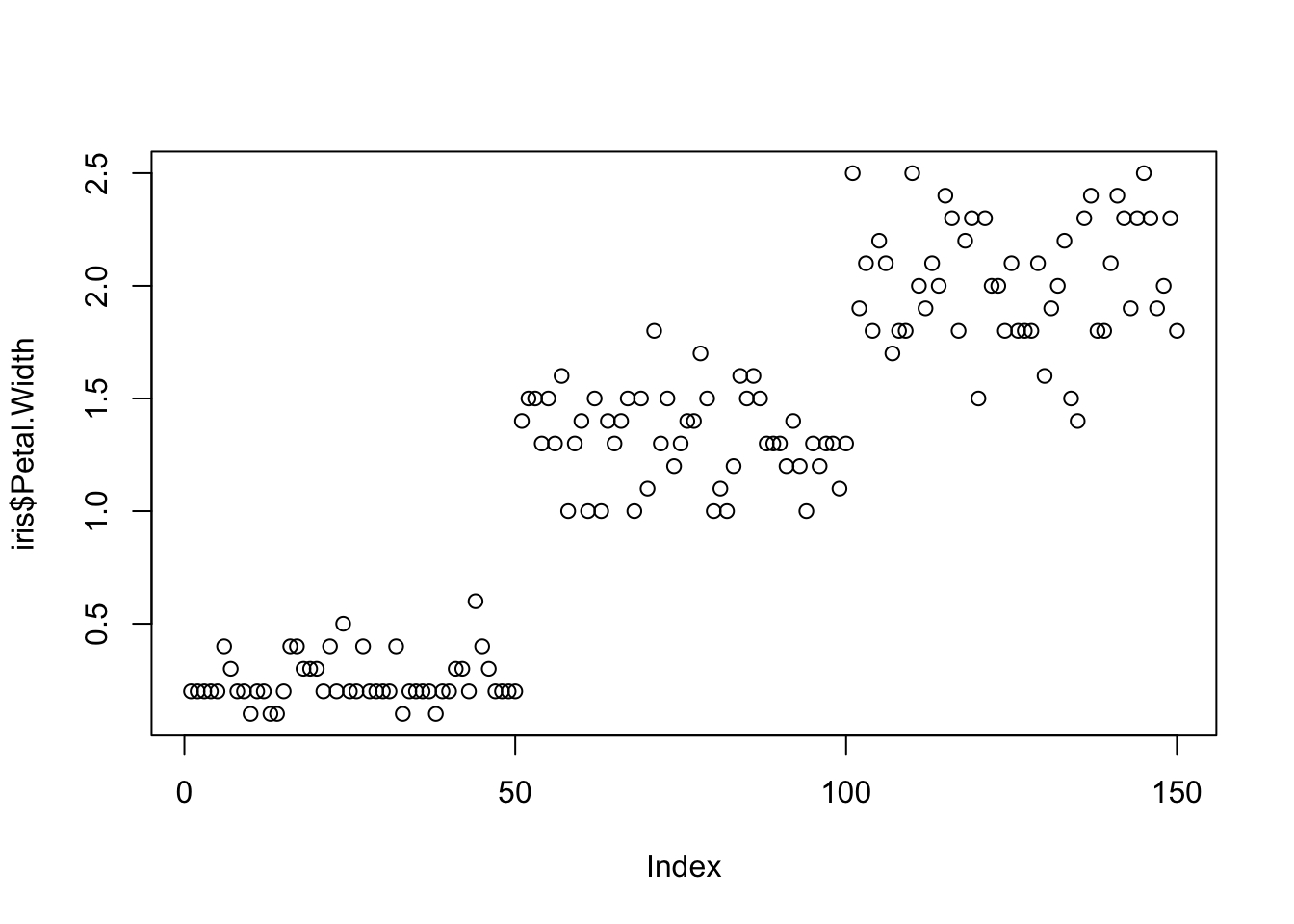

plot(iris$Petal.Width)

Using sonify instead of plot, the distribution of iris petal width sounds like this:

#install.packages("sonify")
library(sonify)
sonify(iris$Petal.Width, play = FALSE)

If you try this on your computer it should play autmatically, buy on the website you can listen below:

Two variables can be used as input to hear the relationship between continuous variables. For instance this bivariate plot of iris petal length and petal width visually looks like this:

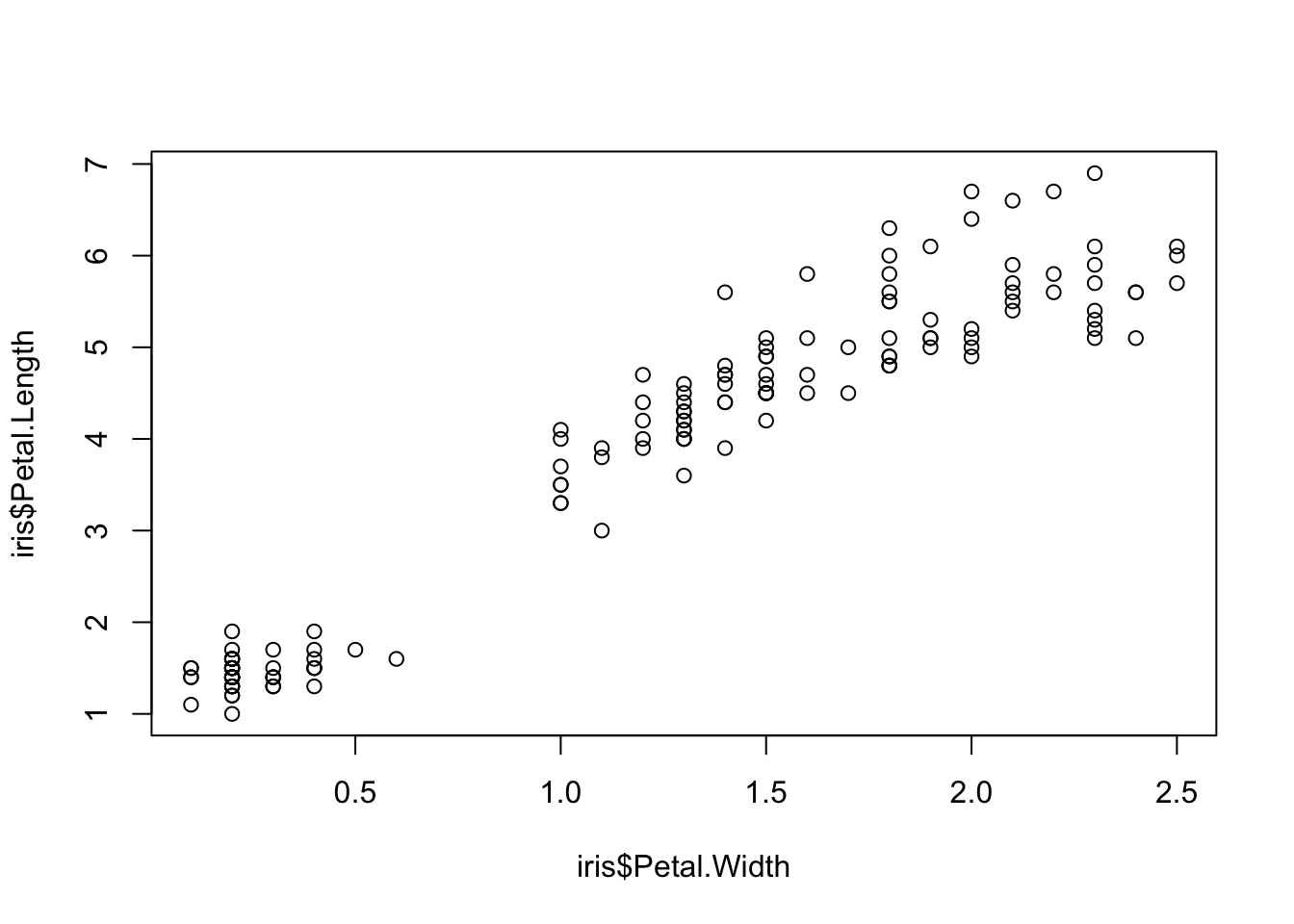

plot(x = iris$Petal.Width, y = iris$Petal.Length)

And using sonify, sounds like this:

sonify(x=iris$Petal.Width, y = iris$Petal.Length, play = FALSE)

28.7 Publishing Multi-paneled Plots

28.7.1 `cowplot`

A few excellent options exist for creating multi-paneled plots for publications. The first and foremost is a package by Claus Wilke called cowplot. With cowplot, it’s possible to quickly combine existing ggplots, creating publication quality plots. See the vignette for more options, but here’s a quick example from the vignette below:

library(cowplot)

# make a few plots:
plot.diamonds <- ggplot(diamonds, aes(clarity, fill = cut)) +
  geom_bar() +
  theme(axis.text.x = element_text(angle=70, vjust=0.5))
#plot.diamonds

plot.cars <- ggplot(mpg, aes(x = cty, y = hwy, colour = factor(cyl))) +
   geom_point(size = 2.5)
#plot.cars

plot.iris <- ggplot(data=iris, aes(x=Sepal.Length, y=Petal.Length, fill=Species)) +
  geom_point(size=3, alpha=0.7, shape=21)
#plot.iris

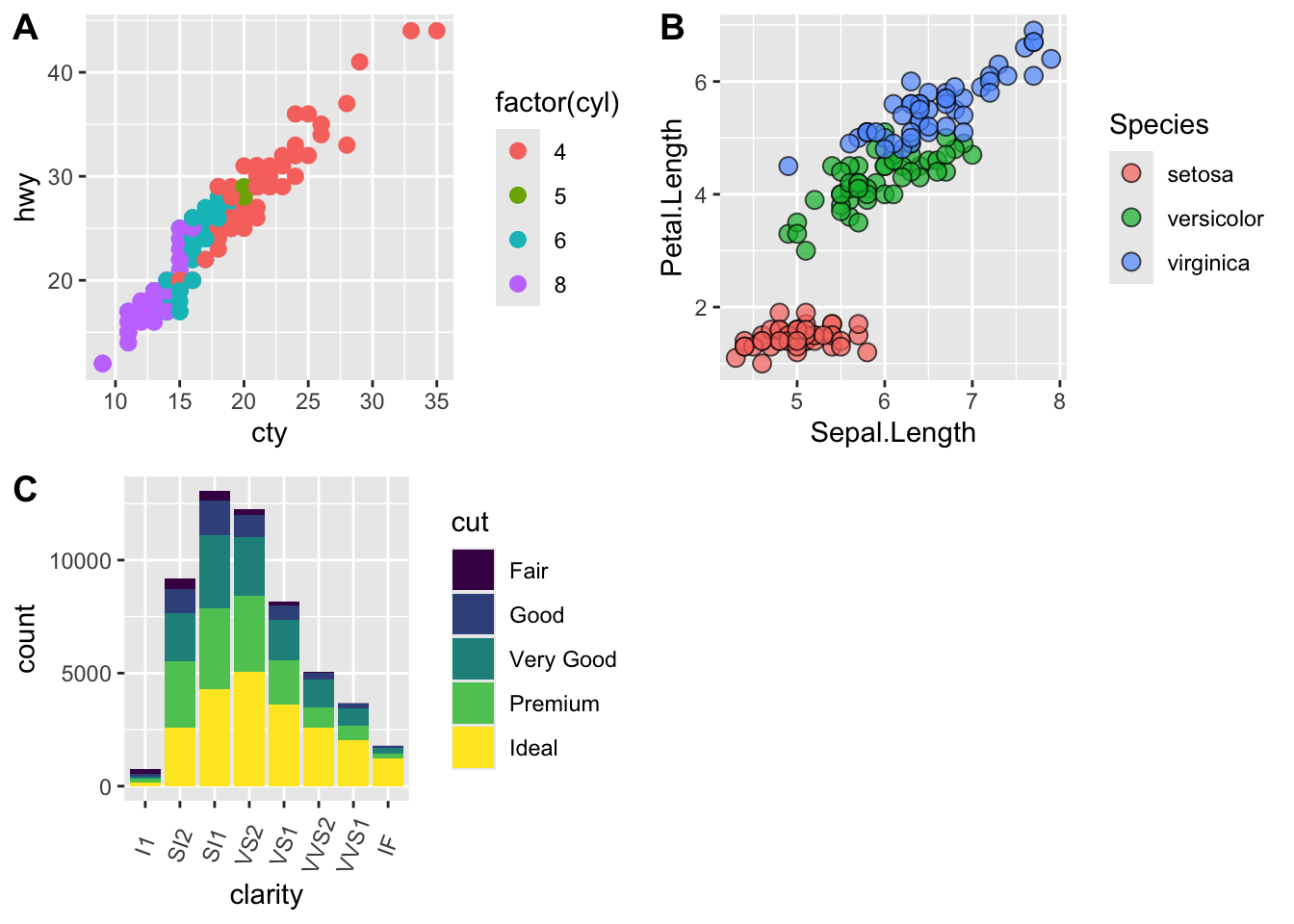

# use plot_grid
panel_plot <- plot_grid(plot.cars, plot.iris, plot.diamonds, labels=c("A", "B", "C"), ncol=2, nrow = 2)

panel_plot

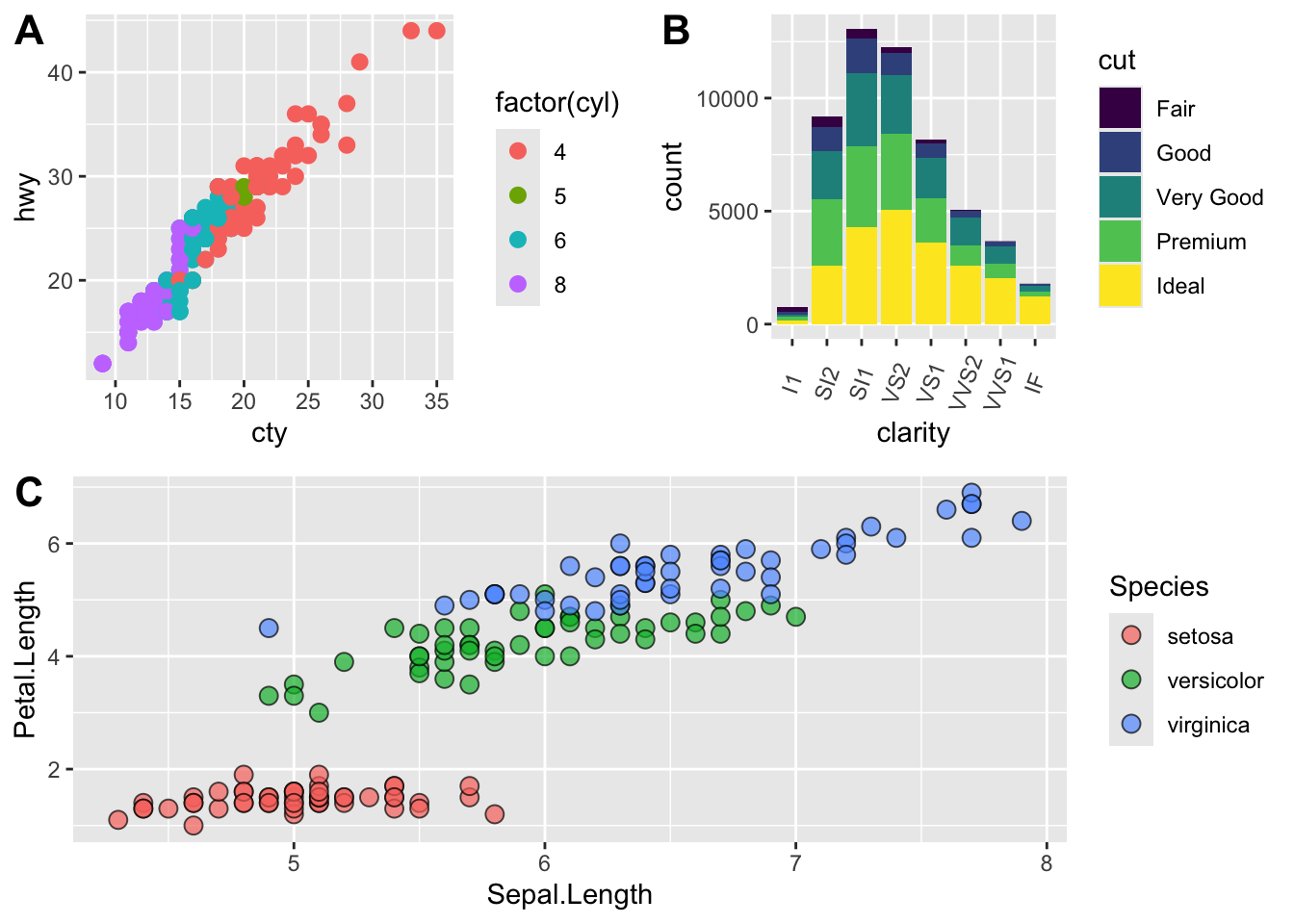

# fix the sizes draw_plot
fixed_gridplot <- ggdraw() + draw_plot(plot.iris, x = 0, y = 0, width = 1, height = 0.5) +
           draw_plot(plot.cars, x=0, y=.5, width=0.5, height = 0.5) +
           draw_plot(plot.diamonds, x=0.5, y=0.5, width=0.5, height = 0.5) +
  draw_plot_label(label = c("A","B","C"), x = c(0, 0.5, 0), y = c(1, 1, 0.5))

fixed_gridplot

28.7.2 `patchwork`

The patchwork R library can also be used to assemble multi-part figures.

Getting Started with Patchwork: https://patchwork.data-imaginist.com/articles/patchwork.html

library(patchwork)

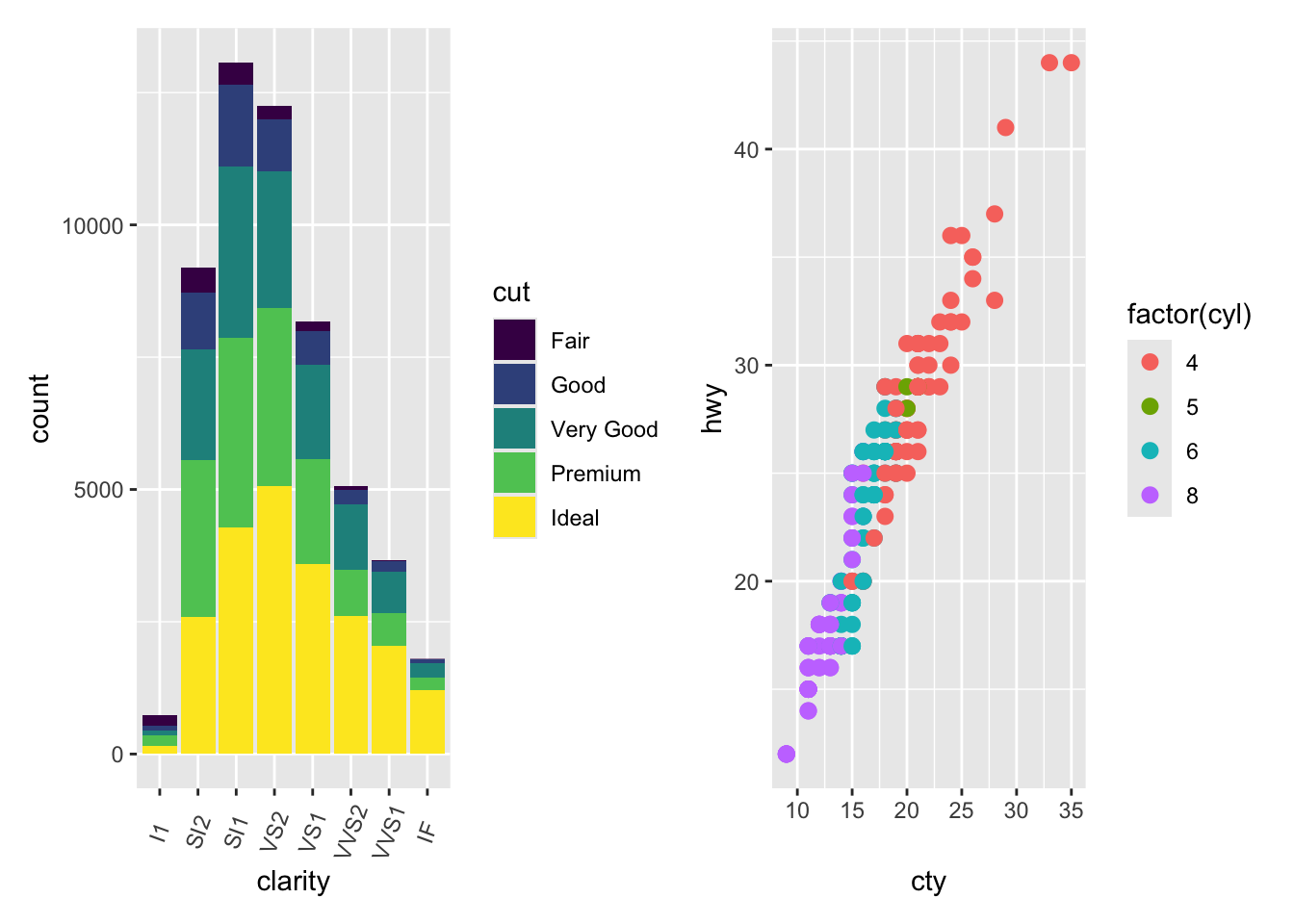

plot.diamonds + plot.cars

(plot.diamonds | plot.cars) / plot.iris

Tags can be easily added to a set of plots, using the plot_annotation command:

plots <- (plot.diamonds | plot.cars) / plot.iris
plots + plot_annotation(tag_levels = 'A')

28.8 Saving Figures and Plots

A plot you created with ggplot or another plotting package can be saved as .JPEGS (or .tiff, .img, etc) onto you. For any ggplot objects, we recommend using ggsave.

First, let’s create a new folder in this project called figures. Let’s save all the figures we create to that folder. ggsave will default to saving the last plot you created, however, we think it is always a good idea to specify exactly which plot you want saved. To do that, we have to save our plot as an object.

ggsave("figures/gridplot.png", fixed_gridplot)

28.8.0.1 With `ggsave` you can save images as

.png, .jpeg, .tiff, .pdf, .bmp, or .svg

28.8.0.2 Other arguments of `ggsave`

scale can scale the image (multiplicative scaling factor)
width and height let you specify the size of the image in units that you specify
dpi can change the quality of the image; for publication graphs we suggest over 700 dpi

ggsave("figures/gridplot.png", fixed_gridplot, width = 6, height = 4, units = "in", dpi = 700)

28.9 Interactive `plotly` graphics

The plotly R package provides an interface to the open source JavaScript graphing library ploty.js.

ggplotly(): transform a ggplot2 object into a plotly object.
plot_ly(): directly create a plotly object.

See the book “Interactive web-based data visualization with R, plotly, and shiny” by Carson Sievert at https://plotly-r.com

28.9.1 How to use `plotly`

The package plotly is an excellent, easy to use resource that allows you to quickly create interactive, web-based figures. We have used plotly to illustrate patterns in data to collaborators, to visualize patterns in our data during the pre-analysis stage, and even impress with “fancy” graphics during a conference talk!

Let’s try plotly together using some of the iris data:

library(plotly)
library(crosstalk)
library(htmlwidgets)

plot.iris <- ggplot(data=iris, aes(x=Sepal.Length, y=Petal.Length, fill=Species)) +
  geom_point(size=3, alpha=0.7, shape=21)

plotly::ggplotly(plot.iris) #it's as simple as that!

28.9.2 Customizing labels

It is possible to customize the labels using the ggplot2 text aesthetic to provide more information.

Example at this link: https://www.littlemissdata.com/blog/interactiveplots

Here’s an example of how to generate a custom tool tip containing information from several columns of the input iris data frame:

plot.iris <- ggplot(data=iris,
   aes(x=Sepal.Length, y=Petal.Length, fill=Species,
   text=paste("Species: ",Species,"\n",
              "Sepal Length: ",Sepal.Length,"\n",
              "Sepal Width:  ",Sepal.Width,"\n",
              "Petal Length: ",Petal.Length,"\n",
              "Petal Width:  ",Petal.Width,"\n",
              sep=""))) +
  geom_point(size=3, alpha=0.7, shape=21)

plotly::ggplotly(plot.iris, tooltip="text")

28.9.3 Animated Interactive Plots

Animated interactive plots using the ’frame’ attribute.

Example at this link: https://slcladal.github.io/motion.html

See also the gganimate R package https://cran.r-project.org/package=gganimate.

28.9.4 Interactive Linked Plots

The plotly package, when combined with the crosstalk package, supports linked plots, where selection of points in one plot highlights them in the other plots. This is known as “linked brushing”.

library(plotly)
library(crosstalk)
d <- SharedData$new(iris)
p <- GGally::ggpairs(d, aes(color = Species), columns = c(1,2,3))

Registered S3 method overwritten by 'GGally':
  method from
  +.gg   ggplot2

highlight(ggplotly(p), on = "plotly_selected")

Warning: Can only have one: highlight
Warning: Can only have one: highlight

Setting the `off` event (i.e., 'plotly_deselect') to match the `on` event (i.e., 'plotly_selected'). You can change this default via the `highlight()` function.

28.9.5 Interactive Manhattan plots

The manhattan command from the qqman R package provides an easy way to make Manhattan plots, but interactive annotated plots can be made using ggplotly.

Also note that for static plots, the ggrepel R package can be used to annotate with SNP names.

See this web page for examples at this link.

In particular, note in the examples:

How ggrepel is used for the annotation.
The interactive version made with plotly.

See also LocusZoom at http://locuszoom.org

28.9.6 CRAN Task View: Dynamic Visualizations and Interactive Graphics

For an overview of R packages that are useful in this area, see the CRAN Task View: Dynamic Visualizations and Interactive Graphics at https://cran.r-project.org/web/views/DynamicVisualizations.html

28.10 Labelling outliers

Example of labeling outliers (from Deducer tutorial video)

library(carData)
data(Leinhardt)
# Set up a new column that only has non-blank names
# for the outliers:
Leinhardt$outName <- ifelse(Leinhardt$infant > 300, rownames(Leinhardt), "")
ggplot() +
  geom_point(aes(x = region, y = infant, size = income),
             data = Leinhardt,
             alpha = 0.6598) +
  geom_text(
    aes(x = region, y = infant, label = outName),
    data = Leinhardt,
    size = 3.0,
    hjust = 1.2052,
    vjust = 0.5155,
    parse = FALSE
  )

28.11 Avoiding overlapping labels

The ggrepel R package can be used to avoid overlapping labels in plots.

“Text labels repel away from each other, away from data points, and away from edges of the plotting area”

See https://ggrepel.slowkow.com/#examples for examples.

library(ggrepel)
ggplot() +
  geom_point(aes(x = region, y = infant, size = income),
             data = Leinhardt,
             alpha = 0.6598) +
  geom_text_repel(
    aes(x = region, y = infant, label = outName),
    size = 3.0,
    data = Leinhardt
  )

28.12 Shiny

28.12.1 Example 1

Shiny is an R library for building interactive web apps with R.

Example at this link: https://shiny.rstudio.com/tutorial/written-tutorial/lesson1/

28.12.2 Tutorial

Heinsberg LW, Koleck TA, Ray M, Weeks DE, Conley YP. Advancing Nursing Research Through Interactive Data Visualization With R Shiny. Biological Research For Nursing. 2022 Aug 26;109980042211211. DOI: https://doi.org/10.1177/10998004221121109

Example at this link: https://lwheinsberg.shinyapps.io/NurShinyExample1/

GitHub repository: https://github.com/lwheinsberg/NurShiny

28.12.3 Example 2

The BDNF DNA Methylation Map:

https://lwheinsberg.shinyapps.io/BDNF_DNAmMap/

Interactively explore the data assembled during the writing of this systematic review:

Treble-Barna A, Heinsberg LW, Stec Z, Breazeale S, Davis TS, Kesbhat AA, Chattopadhyay A, VonVille HM, Ketchum AM, Yeates KO, Kochanek PM, Weeks DE, Conley YP. Brain-derived neurotrophic factor (BDNF) epigenomic modifications and brain-related phenotypes in humans: A systematic review. Neurosci Biobehav Rev. 2023 Apr;147:105078. PMID: 36764636 PMCID: PMC10164361 DOI: https://doi.org/10.1016/j.neubiorev.2023.105078

28.13 Acknowledgments

This lesson is adapted from the Software Carpentry: R for Reproducible Scientific Analysis Vectors and Data Frames materials and the Data Carpentry: R for Data Analysis and Visualization of Ecological Data Exporting Data materials.
